Some boats wear their decade proudly. This cuddy cabin runabout is pure late eighties: white hull, red and blue graphics down the side, chrome grab rails, the kind of boat you still see cutting up the Susquehanna on any warm Saturday. The gelcoat had been looked after. The cockpit had not. The vinyl was chalked and splitting, and the foam underneath had quit so completely that sitting down felt like landing on the fiberglass itself. If you searched for boat seat upholstery Harrisburg PA and found this page, this boat is the full tour of how we handle a cockpit that is past saving with patches.
The owner did not want a cover-up. The call was a complete cockpit interior rebuild through our marine upholstery service: strip everything soft down to the platforms, build new foam from scratch, and sew a fresh skin of marine grade vinyl with the accent stripes carried straight off the hull graphics. We are based in Myerstown and regularly serve Harrisburg and beyond, so boats like this one ride east on a trailer, get patterned in the shop, and go home looking like the year they were launched.
Boat Seat Upholstery Harrisburg PA Can Rely On Starts Under the Vinyl
Re-covering is the right job when the foam still has life in it. This foam did not. Decades of sun, spray, and winter storage had collapsed the cores, so new vinyl over the old padding would only have wrapped the problem in a nicer bag. Instead, the whole L settee and the surrounding panels were rebuilt from the platform up. That is what the pink and cream mockup in the photo above shows: layers of fresh high density foam glued up in lifts, shaped by hand, then carried out to the boat and dry fitted in place. The blue tape strip with handwritten numbers is our fitting log, so every shaped piece went back in exactly the position it was trimmed for.
The Foam Stack
Foam is not one material, it is a menu. The settee got a firmer base layer for structure, with a softer top layer where legs and backs actually rest, and the two tones you see in the process photo mark exactly that split. Edges were rounded over so the vinyl could wrap without stress lines, and the recesses for both cup holders were cut into the top of the forward section before a single pattern was traced. Shaping first and covering second is slower, but it is the difference between a seat that looks right on day one and a seat that still sits right in year ten.
Patterns, Stripes, and the Sewing Room
Once the owner approved the dry fit, the foam itself became the pattern. Every panel was templated off the real shapes, cut from UV stable gray marine vinyl, and sewn on our walking foot Consew machines with thread that can sit in the sun all season without turning brittle. The styling is the fun part. A blue band runs across the backrest, and red and blue stripes cross the seat and drop down the front face, placed so the lines carry around the corners instead of dying at a seam. It is the same discipline we brought to the Polar center console rebuild: the material changes, the rule does not. The upholstery has to agree with the boat.

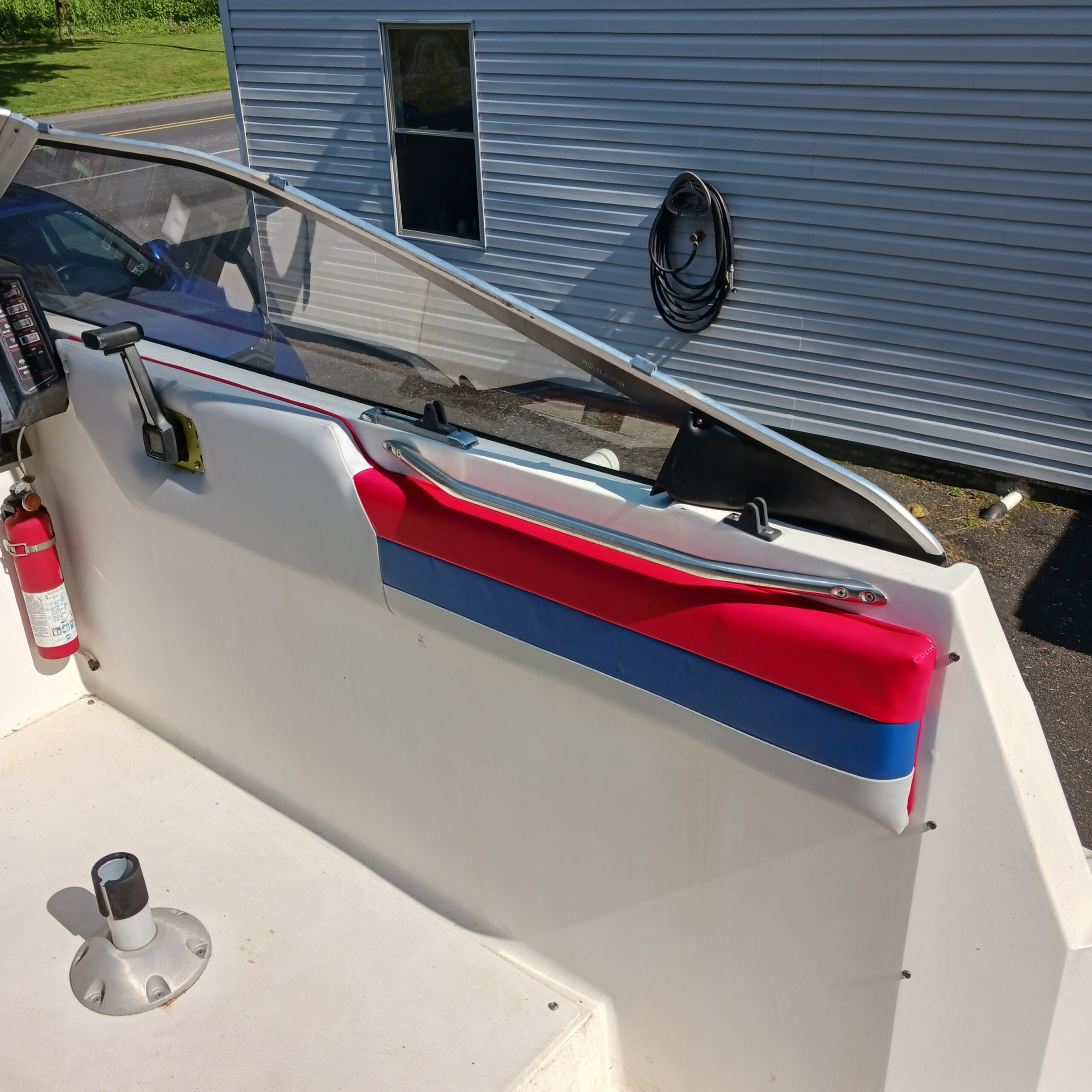

Gunwale Bolsters Around the Chrome Rail
The seating was only half the cockpit. New bolster panels went in along the gunwales too, white and gray fields with the same bold red and blue bands, fitted under the windshield line and around the chrome grab rails. The top bolster is notched cleanly around the rail stanchion so the padding sits tight with no gap for water to camp in, and the rails went back on over fresh vinyl with sound fasteners. Panels like these take more patience than a flat cushion, because they wrap curved fiberglass in plain view and any wrinkle shows from the dock.
Built for Pennsylvania Seasons
A cockpit in this state lives outdoors from April to October and under a cover the rest of the year, so the construction thinks about water all the time. Seams are placed away from the spots where puddles form, the builds leave a path for any water that sneaks in to drain back out, and the foam is chosen to release moisture instead of hoarding it through the winter. Once the boat is back on the water, upkeep is mostly a rinse and the right cleaner. We wrote the whole routine down in our guide to how to clean boat upholstery, and it takes less time than fueling up.
Shop note: if your vinyl still looks passable but the seat sits flat, stays damp for days after a rain, or smells like the bottom of the lake, the foam is finished. New vinyl stapled over dead foam wastes good material, and the seat fails again on the same schedule.
"The vinyl gets the compliments at the dock. The foam decides whether you stay out past lunch."Alex, Alex Upholstery Shop
| Spec | Detail |
|---|---|
| BOAT | Late eighties to early nineties cuddy cabin runabout, white hull with red and blue factory graphics |
| SCOPE | Cockpit interior rebuilt from the foam up: L settee, backrests, gunwale bolsters, and side panels |
| FOAM | Layered high density foam, firmer base with softer top layer, shaped and dry fitted before patterning |
| VINYL | UV stable gray marine grade vinyl with red and blue accent stripes sewn in, not printed on |
| SEAMS | UV stable thread throughout, sewn on walking foot Consew machines |
| HARDWARE | Chrome grab rails and cup holders reinstalled over the new work |
| CONSTRUCTION | Drainage minded build so water that gets in can get back out |
| HOME WATERS | Susquehanna River country around Harrisburg PA |
Options for Your Own Cockpit, From Re-Cover to Full Rebuild
Harrisburg sits right on its boating. The Susquehanna runs through the middle of town, City Island is surrounded by it, and every launch from the riverfront to the lakes nearby feeds a big population of runabouts, pontoons, and fishing boats that live outside all season. Most of the boat seat upholstery Harrisburg PA owners bring us starts exactly like this project did, with photos of seats that look tired and sit worse. We are about forty five minutes east of the river, and because nearly every boat around here already lives on a trailer, getting one to Myerstown is usually the easiest part of the job. If you are still plotting next season while the work is done, Discover Boating keeps a deep library of trip and ownership guides worth a winter evening.
Depending on what is under your vinyl, a cockpit project can land at different depths:
- Re-cover only, when the foam and bases are still sound and the vinyl is the only thing that gave up
- Foam up rebuild like this one, with new layered high density foam shaped, dry fitted, and covered fresh
- Full cockpit makeover, adding gunwale bolsters, side panels, engine cover cushions, and sun pads so every surface matches
- Material choices across marine grade vinyl weights, colors, and sewn-in accent stripes matched to your hull graphics
- Drainage and ventilation upgrades built into any of the above for boats that winter outdoors in Pennsylvania
There is no price list here on purpose. Every boat hides its condition differently, so every job is quoted individually after we see photos or the boat itself, and the number comes from the person who will actually sew the work.
Frequently Asked Questions
The vinyl is only the skin. If the seat has lost its shape, stays damp long after a rain, smells musty, or lets you feel the base when you sit, the foam underneath is done and a re-cover would only hide it for a season. A rebuild replaces the foam in layers, shaped and dry fitted like the settee in this project, so the seat is genuinely new instead of newly dressed. We tell you honestly which level your boat needs after seeing it or your photos.
Marine grade vinyl is built with UV and mildew inhibitors, so it shrugs off summer sun far longer than the furniture grade material some shops substitute. Trailering is its own test, since highway wind flutters anything loose. We pattern covers tight to the foam and sew with UV stable thread, so panels stay drum tight at ramp speed and at road speed. A simple cockpit cover for the highway still buys extra years, and we recommend one.
Yes, and it is what makes a rebuilt cockpit read as factory instead of redone. On this cuddy we pulled the red and blue from the hull stripes and sewed matching accent bands into the gray vinyl, aligned so the lines carry across seats, faces, and gunwale bolsters. We match against the actual gelcoat in daylight, not a swatch under shop lights, because reds and blues drift badly between the two.
Dry and ventilated beats sealed and damp every time. Wash and fully dry the vinyl before layup, stand loose cushions on edge so air reaches both faces, and crack hatches or use vent inserts if the boat is covered or wrapped. Trapped moisture is what feeds mildew, not the cold itself. The drainage minded construction we build in helps, but airflow through the off season is the cheapest insurance your new upholstery can get.
Work backward from launch day. A cockpit rebuild takes real shop time once materials arrive, and spring is when everyone remembers their seats at once. If you want the boat back for Memorial Day, the smart month to start a boat seat upholstery Harrisburg PA project is January or February, while the boat is parked anyway. Winter clients skip the rush, miss zero boating days, and splash in spring with the cockpit already done.
